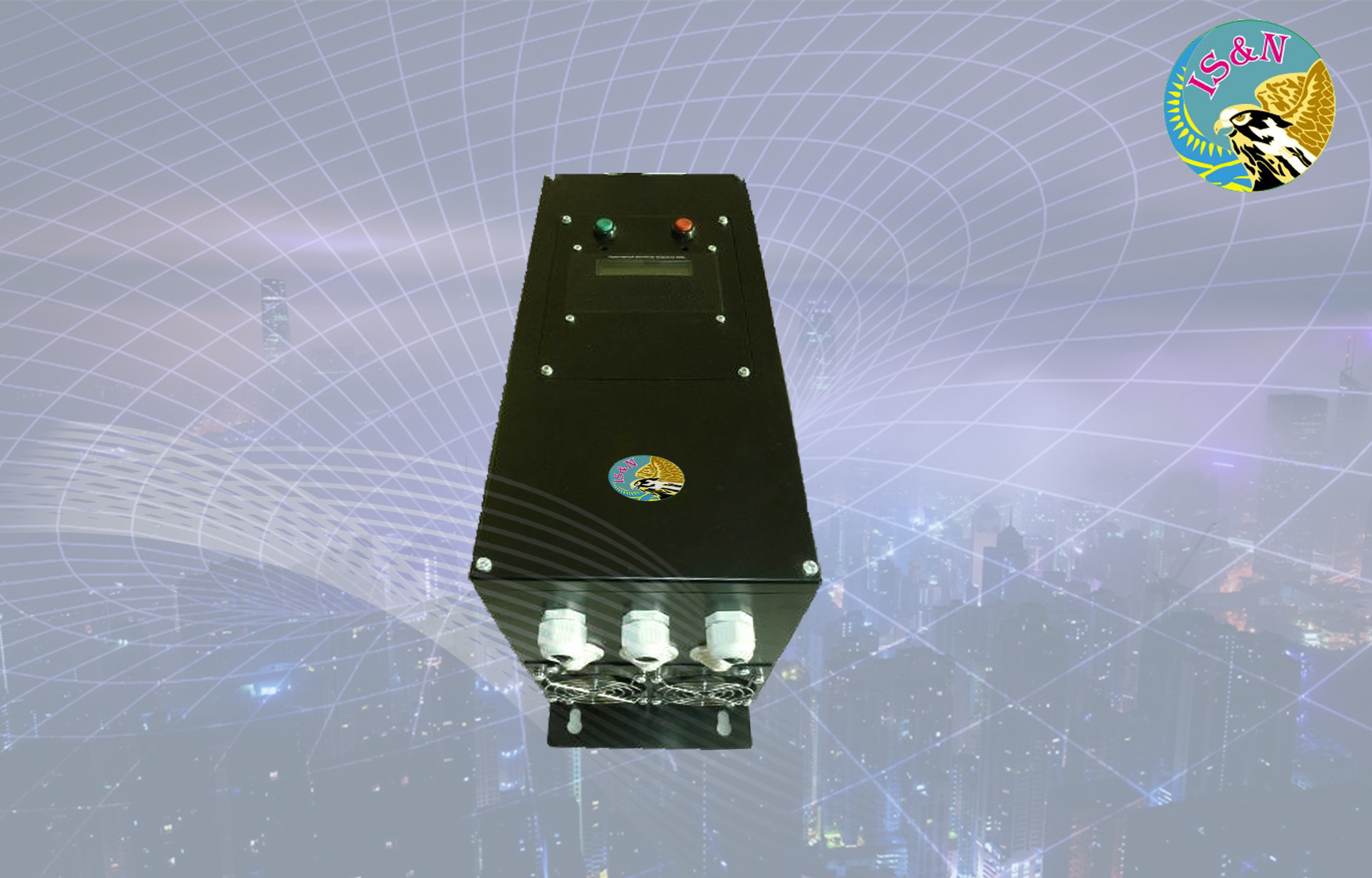

The USPD asynchronous motor driver is designed to reduce the starting currents of an asynchronous electric motor due to the smooth supply of mains voltage to the motor windings.
Reducing the starting currents allows you to avoid a ”drawdown” of the mains voltage, reduce the load on power cables, increase the service life of mechanical equipment due to shockless start-up and braking. ZVEL-MOTOR is available for engines with power from 15 to 110 kW, operating from a standard AC network. USPD is a mounted for installation inside special box for supporting requiring air and moisture conditions. On the front panel of which there are control buttons and a liquid crystal display for initial parameter setting
| Power network | 120-600 V, 50 Hz or 18-160V |
|---|---|
| Motor connection diagram | "star", " triangle” |
| Rated power of the engine | 15, 22, 30, 37, 45, 55, 75, 90, 110, 132 kW |
| Control element | Thyristor or IGBT |
| Type of control system | Microprocessor-based |
| Soft start and stop time | 3..50 sec |
| Display | 32-character liquid crystal display, 2 LEDs |
| Protection: Output short circuit | Electronic protection |
| Protection: continuous current overload | Electronic protection |
| Protection: Load connection monitoring | Electronic, only works before starting up |
| Protection: monitoring thyristor health | Electronic, only works before starting up |
| Maximum overload capacity | I=4,5 Inom – 20 sec, I=3 Inom – 60 sec, I=2 Inom – 90 sec min, 1.5 In – 3 min |
| Availability of the pulse start function | Yes |
| Pulse-start voltage | 60..100 % Ul |
| Pulse start time | 0.1..0.5 sec |
| Short-circuit protection trigger threshold | I = 10..12 Inom |
| Security level | IP65 |
| Cooling system | Forced by built-in fans |
| Fan resource | 50,000 hours |
| Ambient temperature | -40..50 C |
| Isolation | 2.5 kV between chassis, power circuit and control circuits |
| Operating mode | All time |
| Service life | At least 10 years old |
