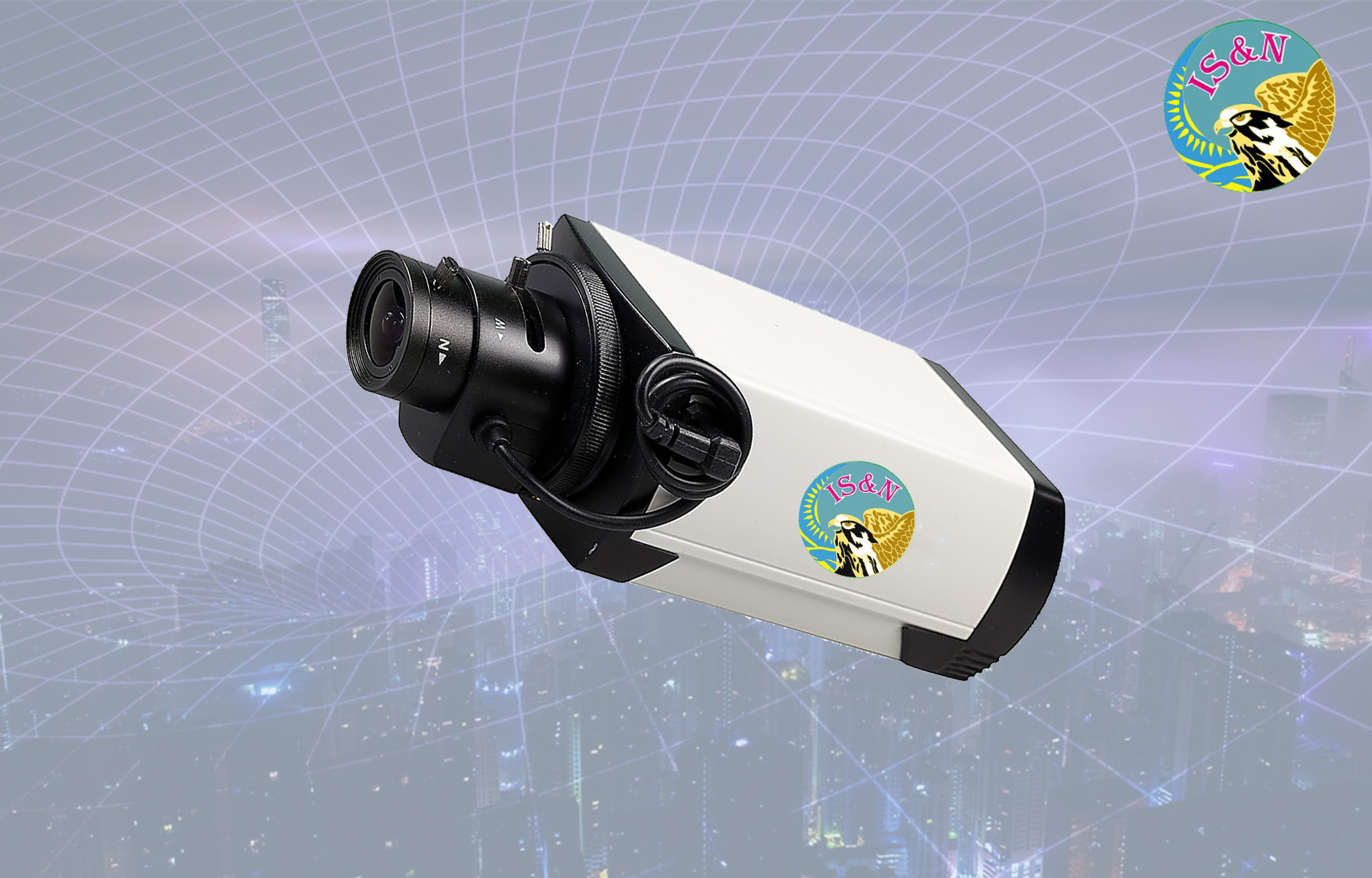

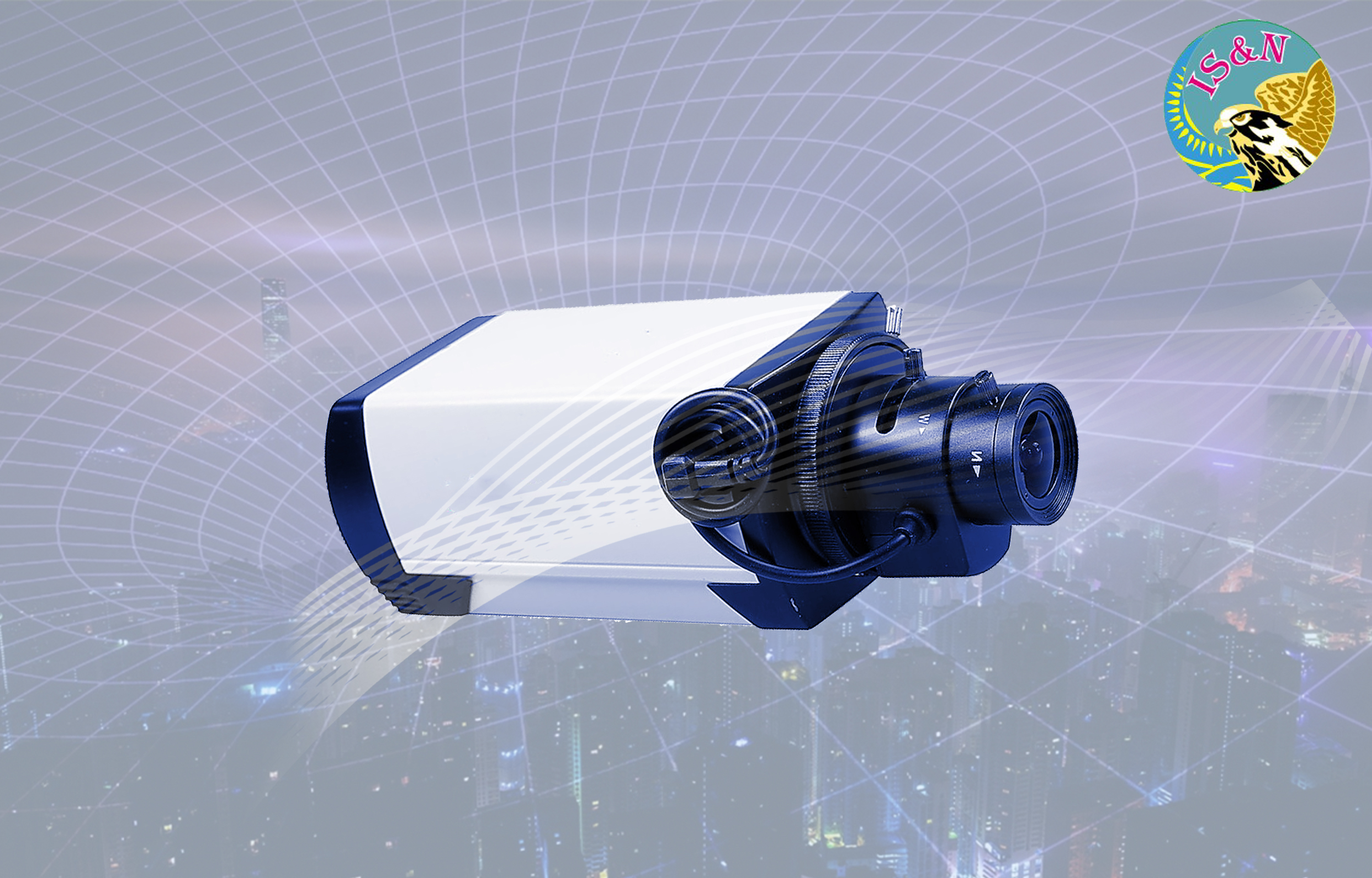

Smart Camera SM Camera was designed for video surveillance and object recognition applications.
SM Camera cameras are intended for use as a part of video surveillance, security and video-conference systems and other equipment
SM Camera cameras films the surrounding space and forms a video sequence for further analysis on a powerful central computer or a video analytics server when performing the
functions of 1) object recognition, 2) determining the characteristics of moving objects
| Shutter type | Global Shutter |
|---|---|
| Sensor size (optical) | 2/3" |
| Sensor type | CMOS array SONY IMX264, with global shutter, high sensitivity in the near-IR,automatic or customized white balance, exposure setting |
| Sensor size | 8.4×7.1 mm |
| Resolution (Horizontal x Vertical) | 2448×2048 pixels |
| Resolution | 5 megapixels |
| Pixel size (Horizontal x Vertical) | 3.45×3.45 µm |
| Chrominance | monochrome / color |
| Color depth | 10 or 12 bit |
| Image resolution | 1920×1080 (1080р), 1280×720 (720р) or 2448х2048 (max) |
| Frame rate for color image | 60 fps (720р), 30 fps (1080р), 30 fps (max) |
| IR lighting | optionally |
| Video format | uncompressed flow (RGB) |
| Frames compression | no |
| HDR availability | optionally |
| C and CS-mount types lens support | optionally |
| Frames transmission to the external computer by interface | USB3.0 |
| Supply voltage | 5 V |
| Average power consumption | 2.3 W |
| Resistance to radio frequency electromagnetic fields | according to GOST P 51317.4.3-99, the 2nd level of test stringency , “C” quality of the operation |
| Weight | ≤190 |
| Overall dimensions | 55x55x55 mm |
| Impact resistance | 150 m/s2 |
