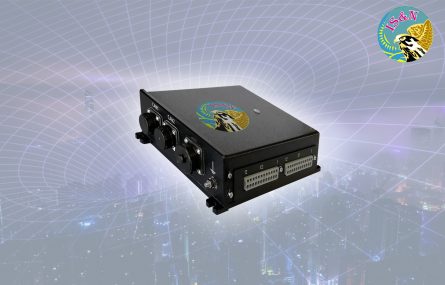

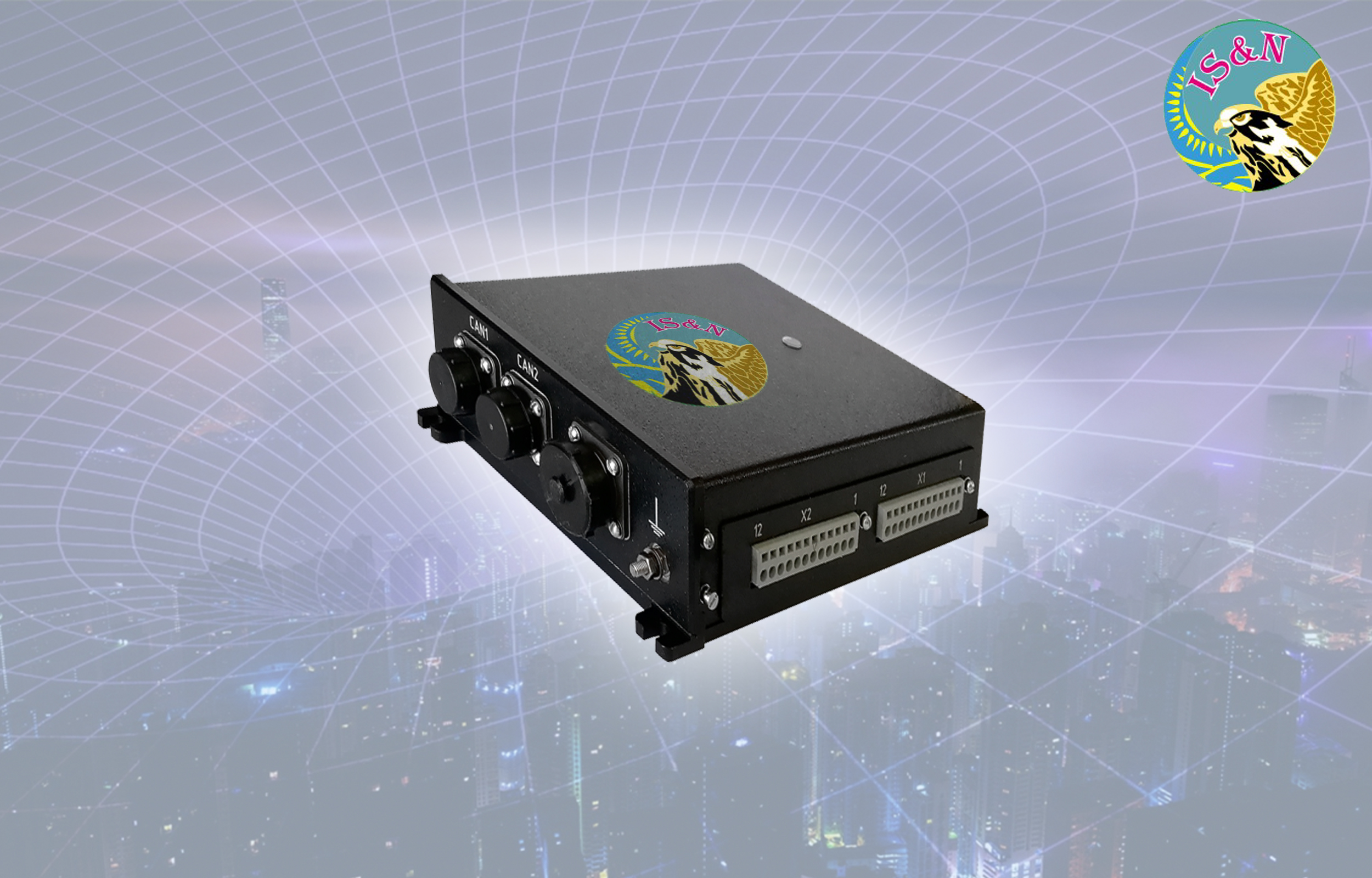

The BUS-CAN control and interface unit is designed to expand the range of recorded signals. Provides reception of discrete signals from the locomotive control system, the operator’s crane controller and other locomotive devices, provides preliminary processing of the collected information and its transmission to the control units via the CAN 2.0A channel. BUS-CAN also provides the output of control signals for the locomotive sandbox by a command received via the CAN 2.0A channel.
| Number of binary input signals | 11 |
|---|---|
| Number of binary output signals | 1 |
| Interface for communication with external devices | CAN 2.0А |
| Supply voltage, V | from 35 to 160 |
| Power consumption, VA | no more than 35 |
| Operating temperature, ºWith | -40 to +50 |
| Overall dimensions, mm | 155x55x225 |
| Weight, kg | no more than 1.5 |
